ANQ

详情

ANQ-I1W-O1W-S-Z

ANQ-I1W-O1B-S-Z

ANQ-I1B-O1W-S-Z

ANQ-I1B-O1B-S-Z

ANQ Series

SPECIFICATIONS
Operating force:
   Max. 300 gf Operation / mim
Operating frequency(electrical):
   Push-120 Operation / mim
Contact resistance:
   300m Ω(max)
Service life(electrical)
   Push-Min. 200,000 Operations

RATING
1mA 10VDC

APPLICATION
Remote controls,

Tablets,

Keyboards,

Audios,
Mp3players,

Notebooks,

Mobile phones,

Control Panel

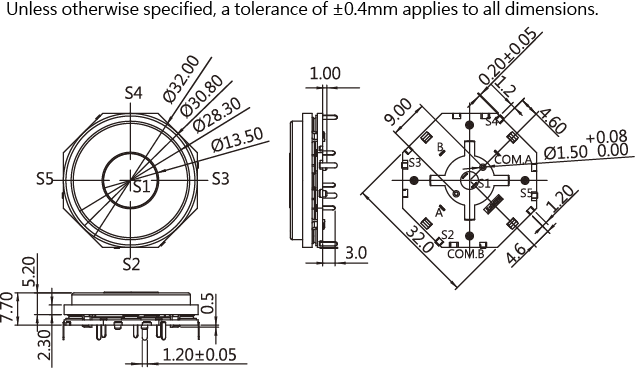

DIMENSIONS

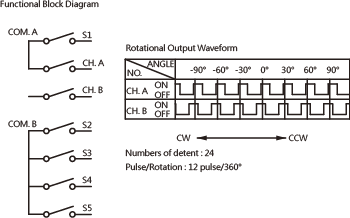

CONTACT CONFIGURATION

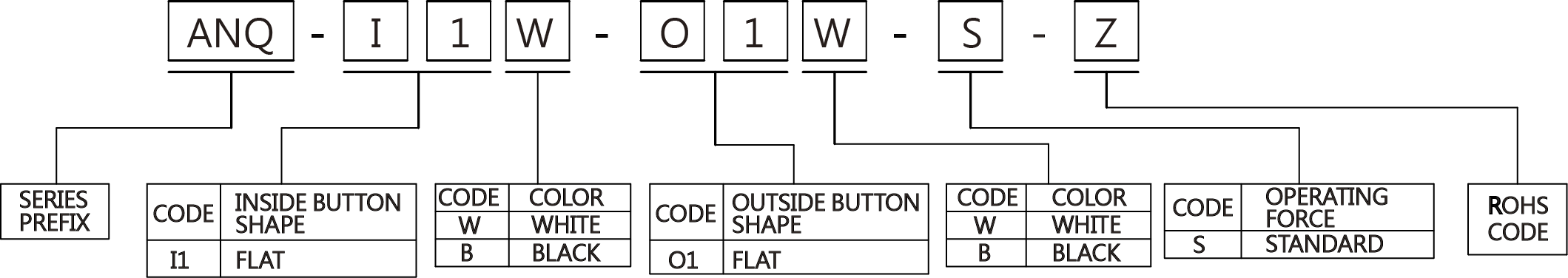

ORDER INFORMATION
