ANM

ANM-I1W-O1W-Z	ANM-I1W-O1B-Z	ANM-I1W-O1G-Z	ANM-I1B-O1W-Z	ANM-I1B-O1B-Z
ANM-I1B-O1G-Z	ANM-I1G-O1W-Z	ANM-I1G-O1B-Z	ANM-I1G-O1G-Z

ANM Series

SPECIFICATIONS
Operating force:
   Push - Max.300 gf Operation / mim
Operating frequency(electrical):
   Push-120 Operation / mim
Contact resistance:
   300m Ω(max)
Service life(electrical)
   Push-Min.1,000,000 Operations

RATING
1mA 10VDC

APPLICATION
Remote control,

Tablet,

Keyboard,

Audio,

Mp3,

NB,

Mobile phone

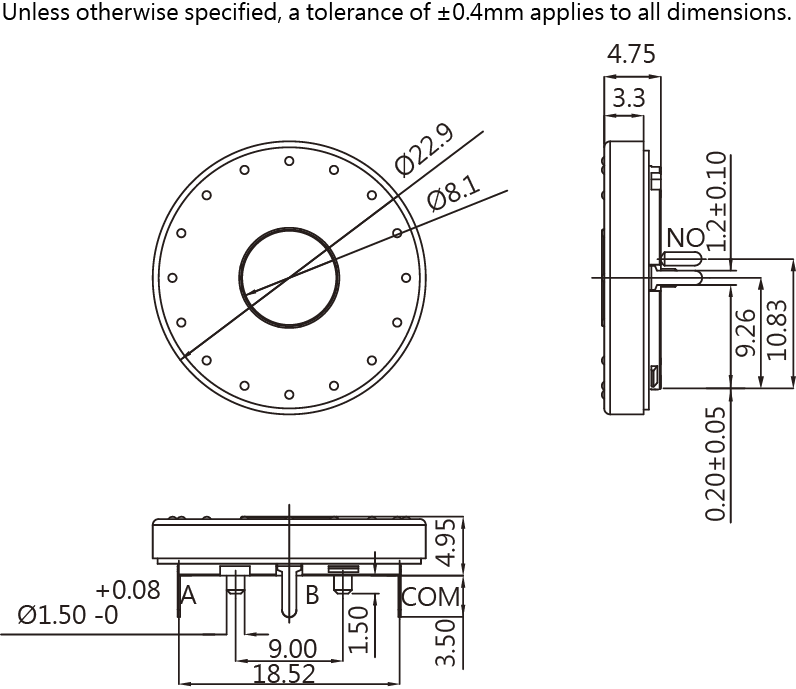

DIMENSIONS

CONTACT CONFIGURATION

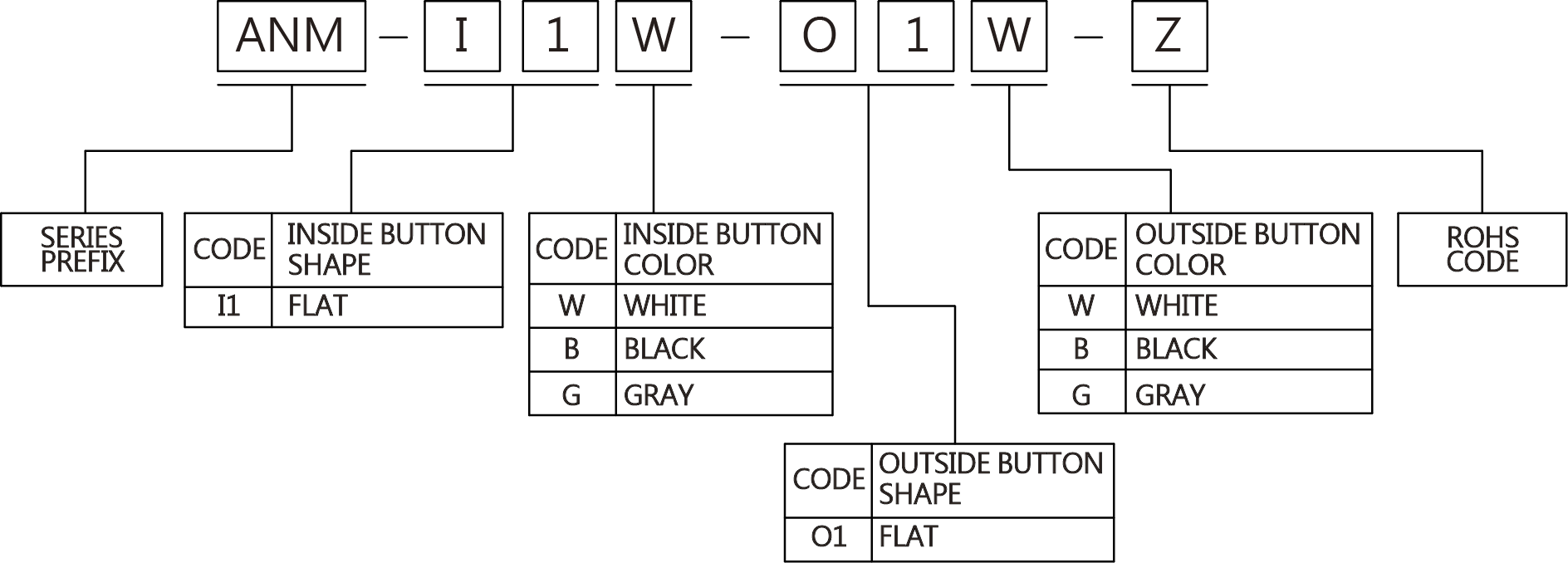

ORDER INFORMATION
