P8

详情

P8-10S-0A-Z

P8-10S-0D-Z

P8-10S-1A-Z

P8-10S-1D-Z

P8 Series

SPECIFICATIONS
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   50m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(electrical)
   Min. 10,000 Operations

RATING
10A 125VAC,6A 250VAC,7(4)A 250 VAC

APPLICATION
Juice Maker,

Blender,

Food Processor

DIMENSIONS

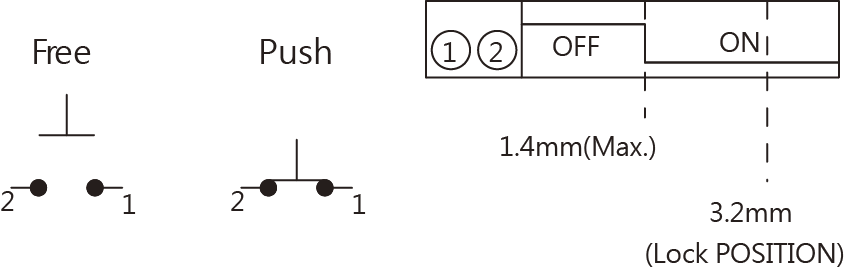

CONTACT CONFIGURATION

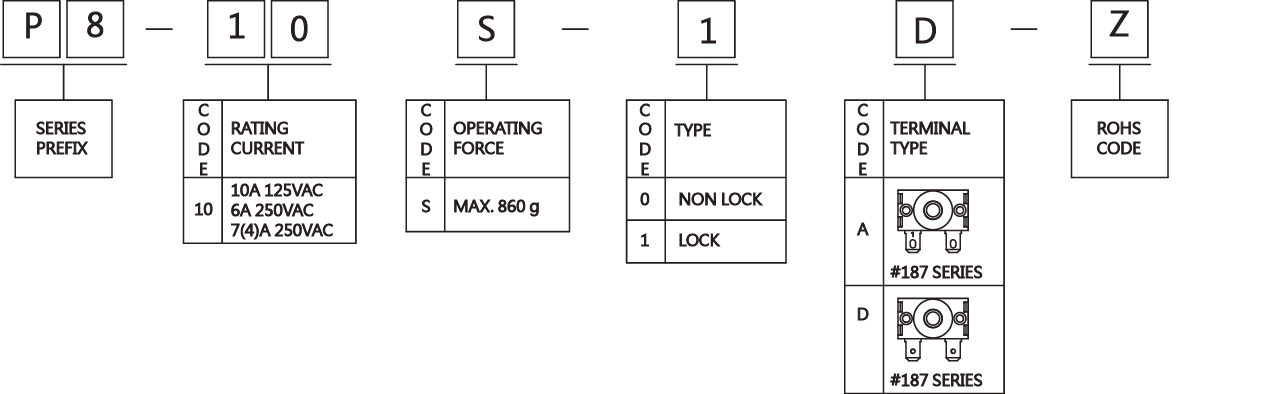

ORDER INFORMATION

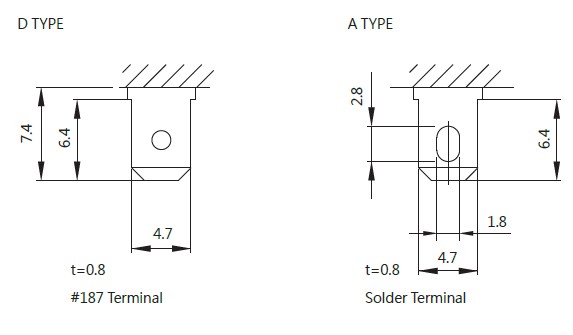

TERMINAL TYPES

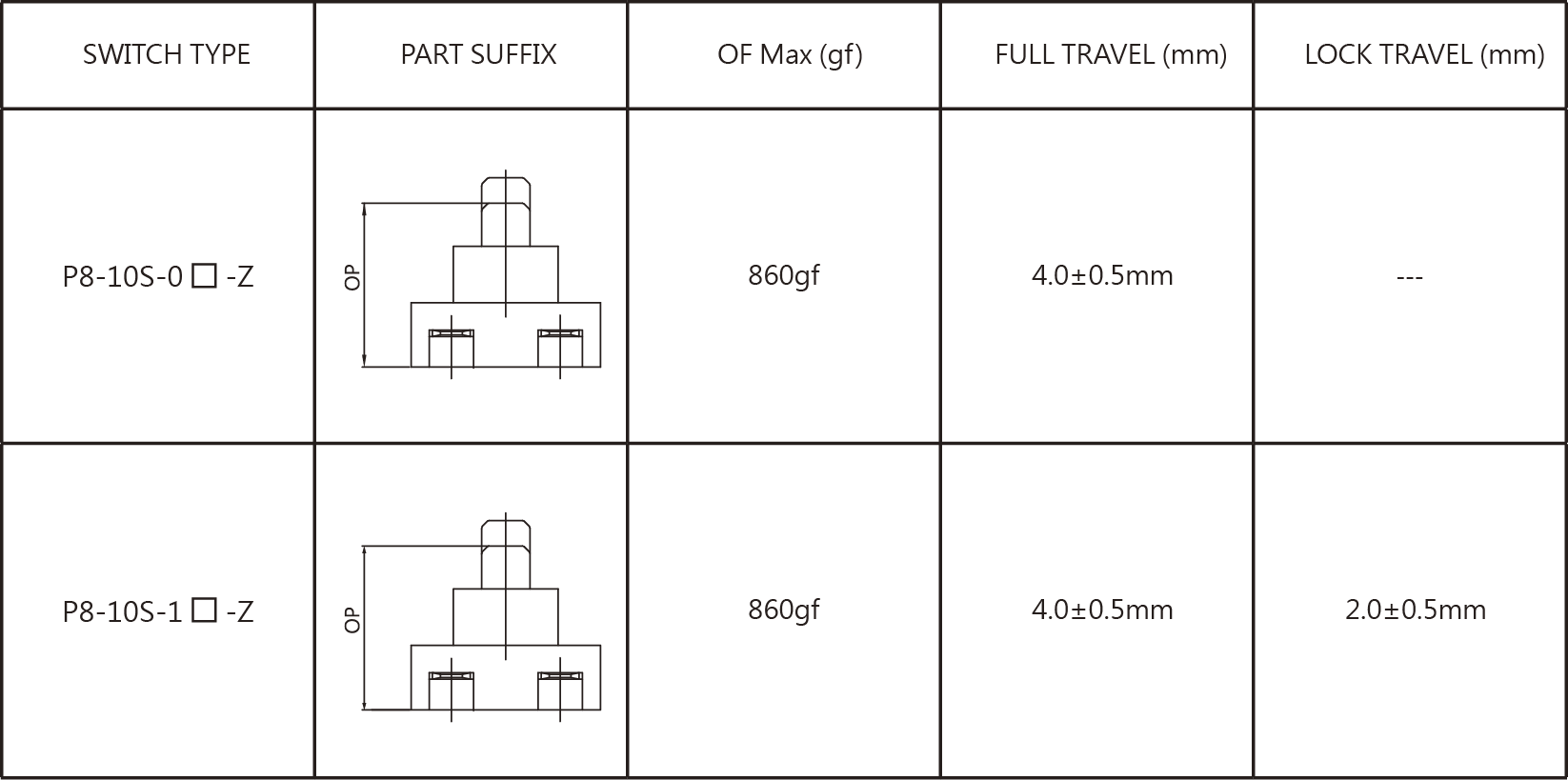

OPERATING CHARACTERISTICS
