VM Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min.10,000,000 Operations
Service life(electrical)
   5A-Min.10,000 Operations

RATING
0.1A/5A 125/250VAC

APPLICATION
Joystick
TV Game
Time Recorder
Gaming Device,Air Conditioner
Food Processor
Juice Maker
Alarm
Mixer
Shredder Machine

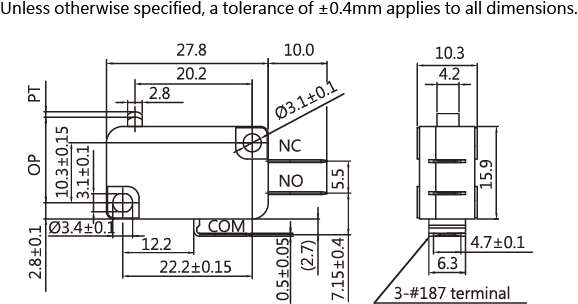

DIMENSIONS

CONTACT CONFIGURATION

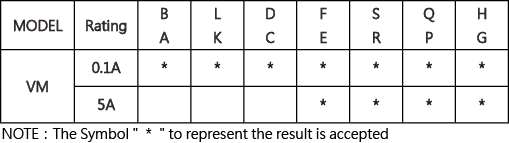

OPERATING FORCE

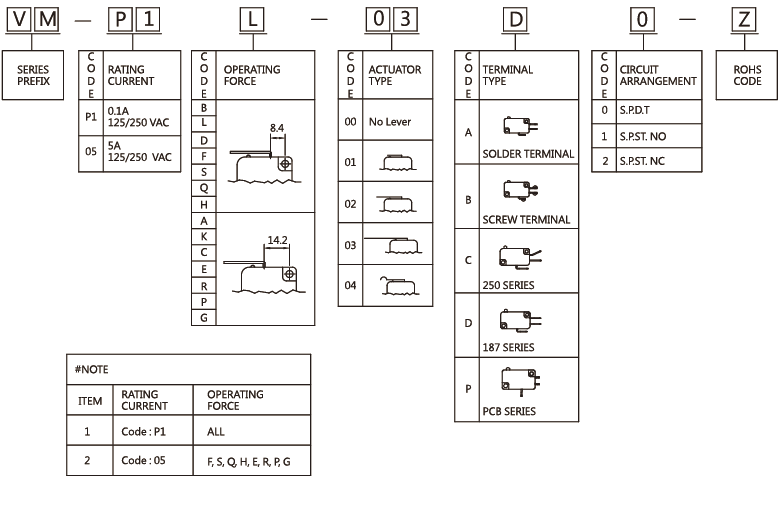

ORDER INFORMATION

TERMINAL TYPES

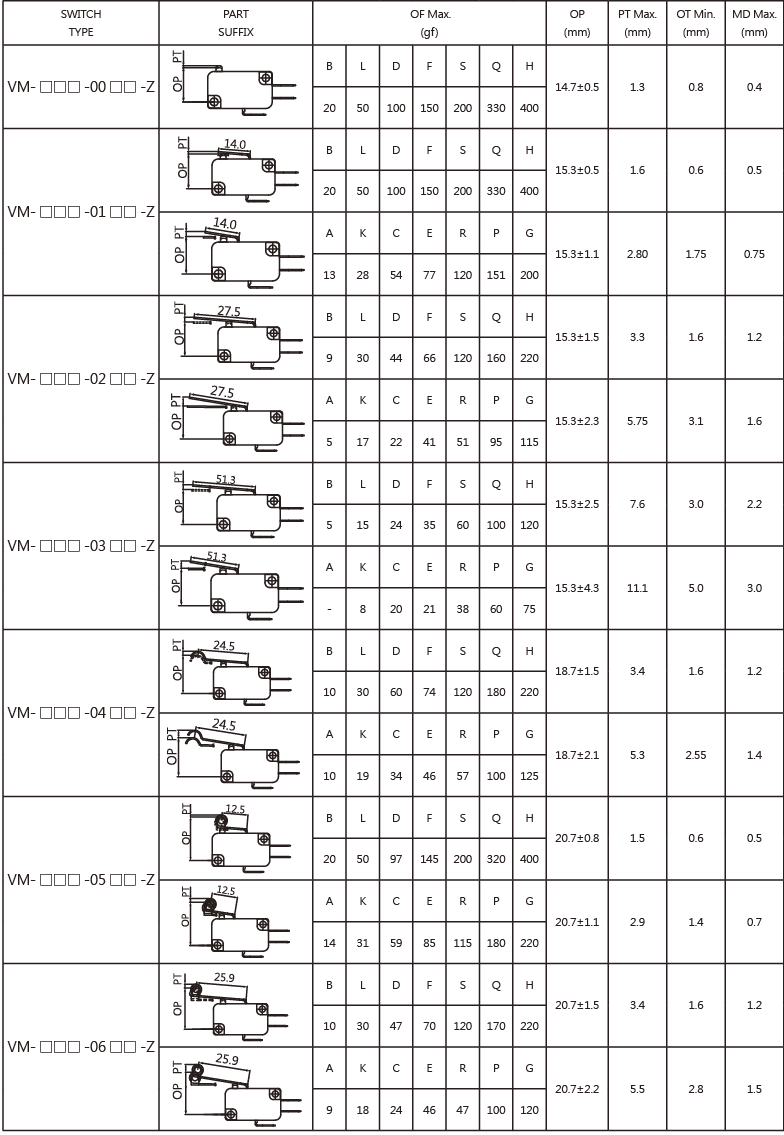

OPERATING CHARACTERISTICS

VM
