DS1

产品型号：DS1-P1L-00P-Z DS1-P1L-00C-Z DS1-P1L-00D-Z DS1-P1L-00T-Z

DS1 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   120 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(Or at 250 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 5,000,000 Operations
Service life(electrical)
   Min. 3,000,000 Operations

RATING
0.1A 12VDC / 0.1A 125VAC

APPLICATION
Mouse,Joystick

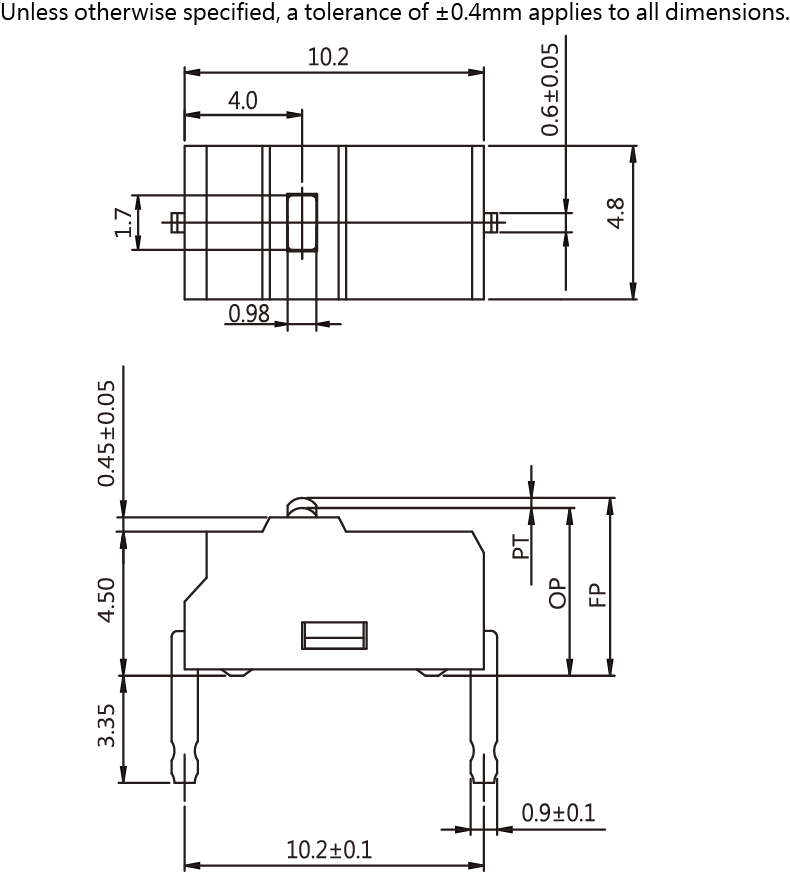

DIMENSIONS

CONTACT CONFIGURATION

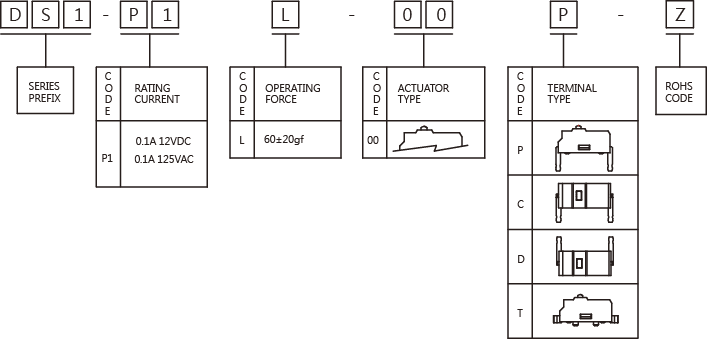

ORDER INFORMATION

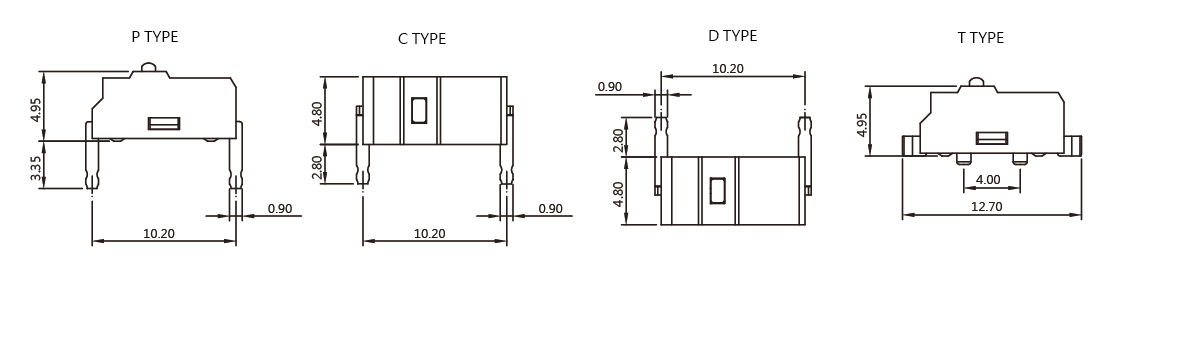

TERMINAL TYPES

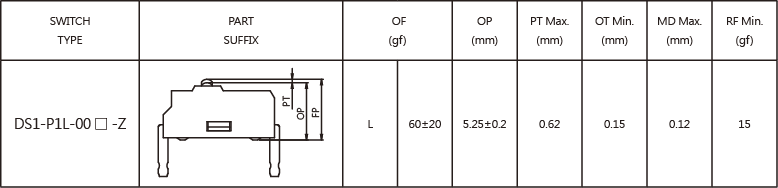

OPERATING CHARACTERISTICS
