B8

详情

B8-P1S-0D-Z

P8-P1S-0D-Z

B8 Series

SPECIFICATIONS
Operating frequency(electrical):
   120 Operation / mim
Contact resistance:
   200m Ω(max)
Insulation resistance(Or at 250 VDC)
   100M Ω(Min)
Service life(electrical)
   Min. 200,000 Operations

RATING
50mA 24VDC

APPLICATION
Digital Cameras,Mobile Phones

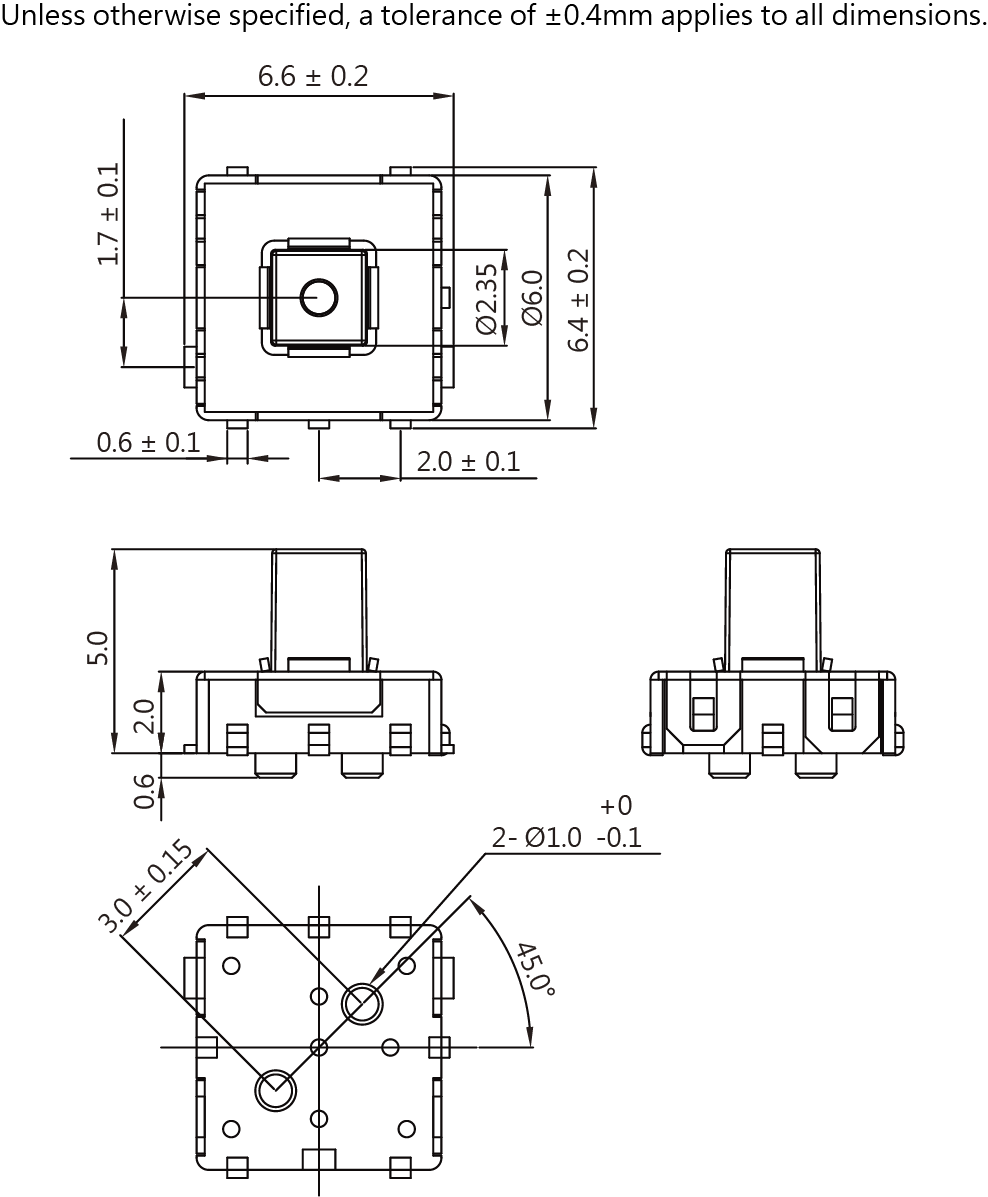

DIMENSIONS

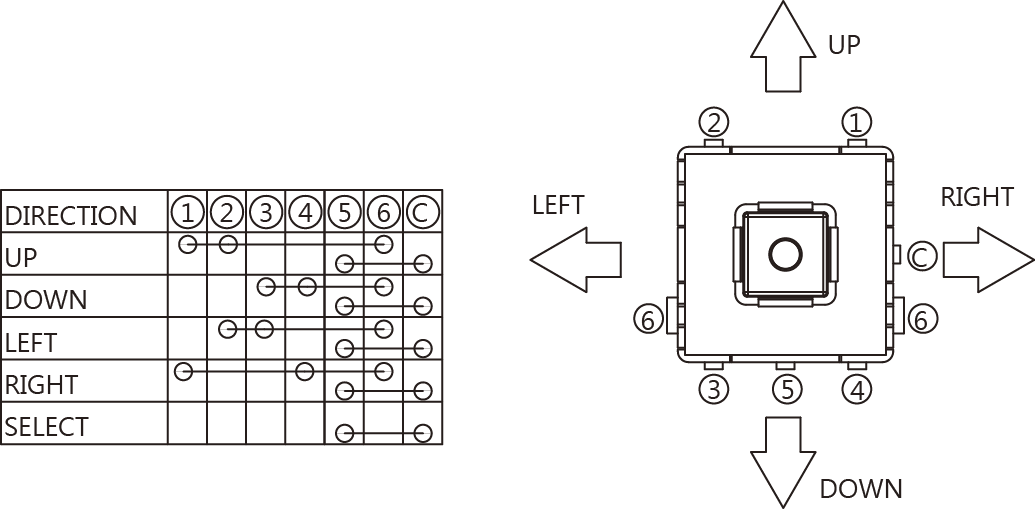

CONTACT CONFIGURATION

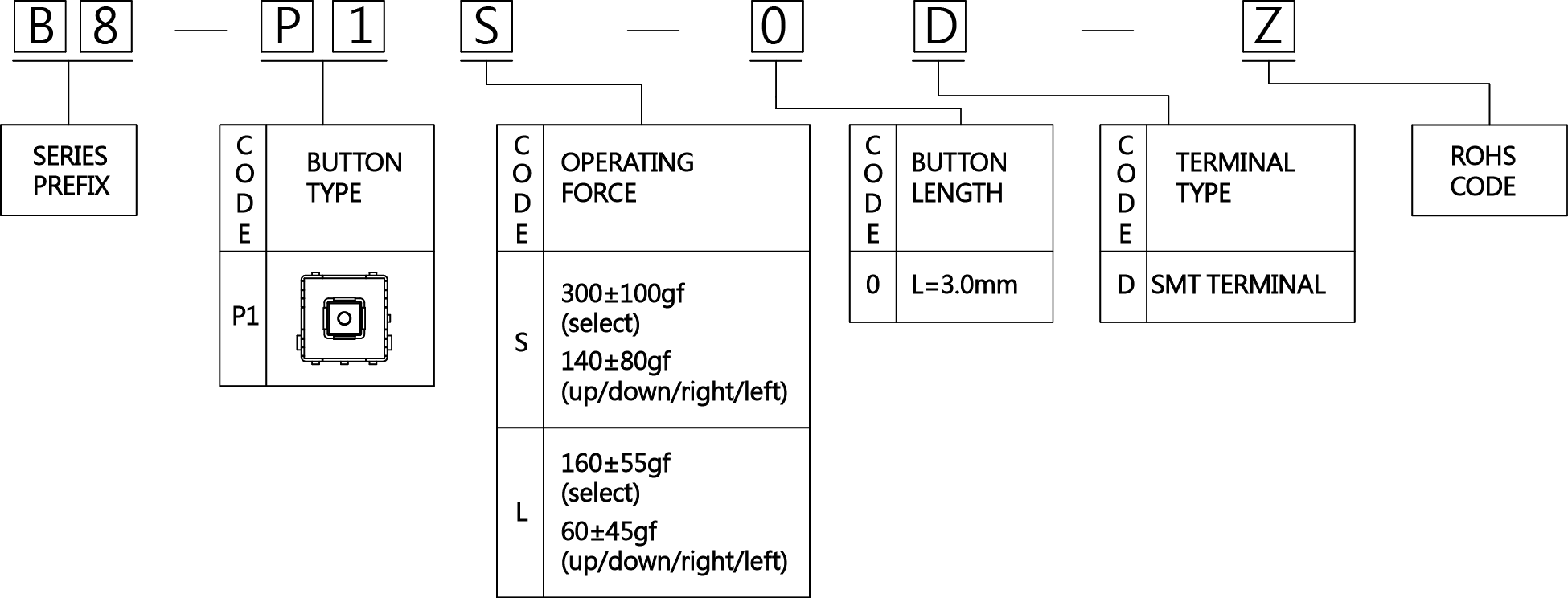

ORDER INFORMATION

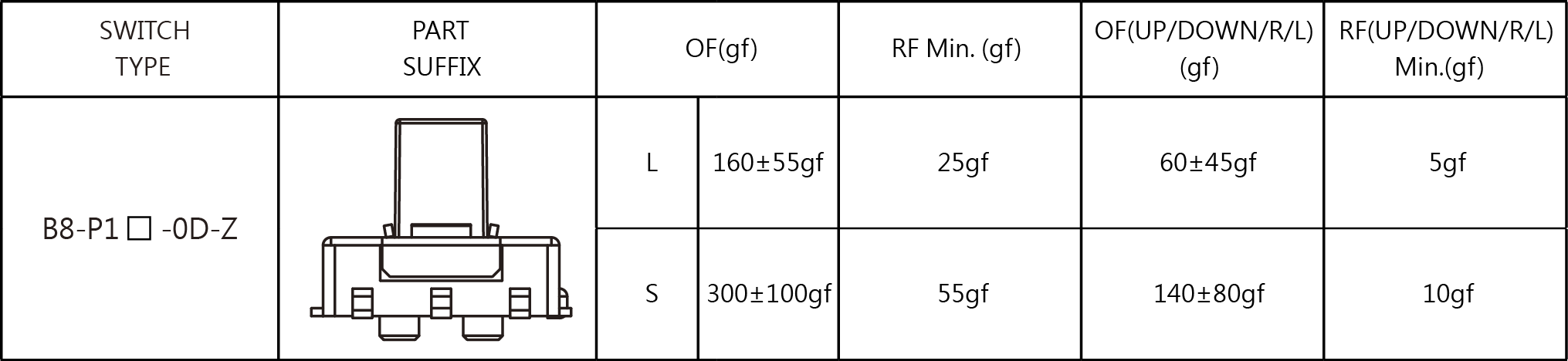

OPERATING CHARACTERISTICS
