TM-1604

TM-1604 Series 5-position Navigation Switch

·5 position navigation switch
·10.6mm x 10mm base
·5.0mm,6.3mm,7.0mm,9.0mmtall

Typical Specifications

1.Operating force
4-Directional : 180gf
Center push : 320gf
2.Travel
4-Directional : 0.25mm
Center push : 0.15mm
3.Rating : 50mA 12V DC
4.Lifetime : 50,000 cycles
5.Initial contact resistance : 500mз max
6.With or Without guide bosses

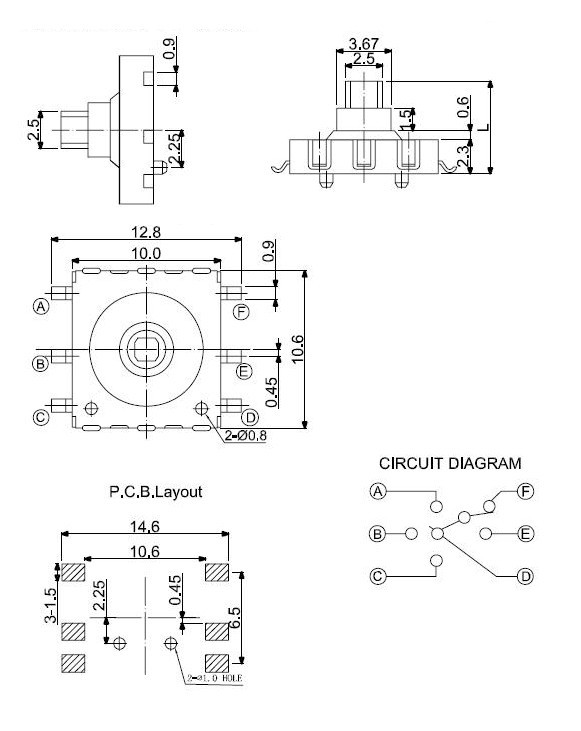

                                                          TM-1604B

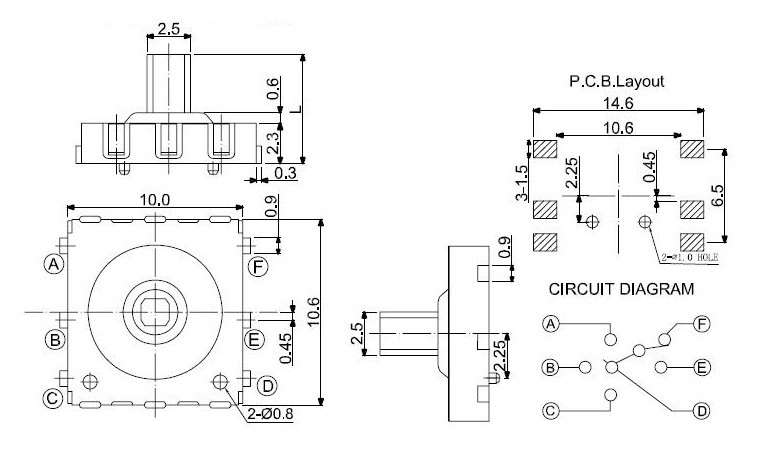

                                                                     TM-1604A

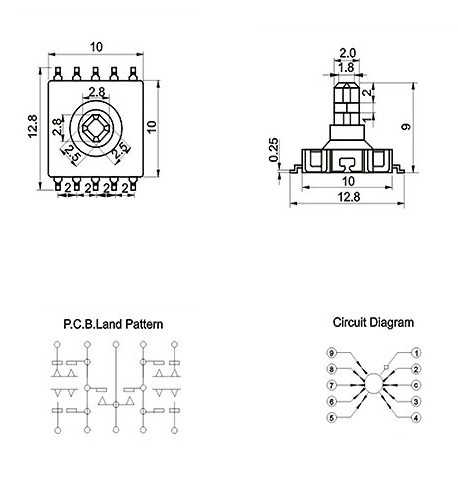

                                                     TM-1604
